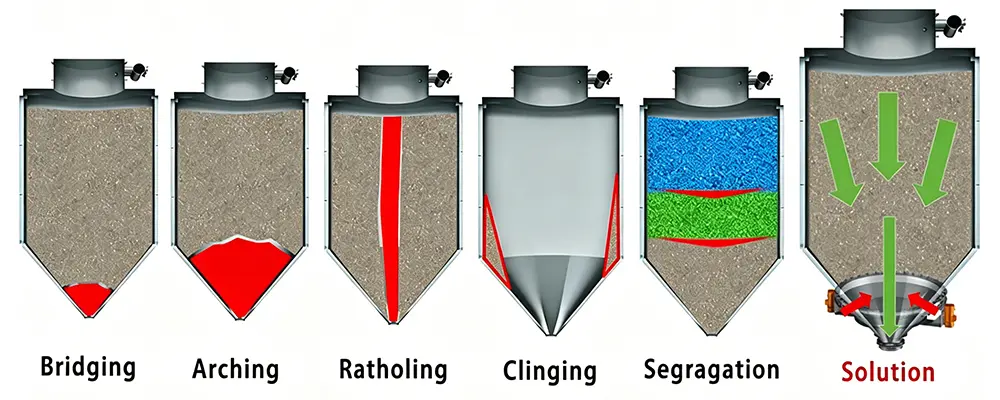

Silos are frequently used to store mineral powder, fly ash, cement, limestone powder, coke, sand and gravel, grain, feed, fertilizer granules and various hygroscopic sticky powders. During production, common issues include material bridging, rat‑holing, material build‑up on silo walls and complete blockage at the discharge outlet. These problems lead to intermittent discharging, fluctuating flow rates and material segregation. They not only disrupt downstream batching and metering processes, but also require manual clearing by hammering or poking the material. Such manual operations damage silo structures and pose substantial safety hazards. Bin activators offer the optimal solution to eliminate silo bridging and blockages and guarantee continuous material discharge.

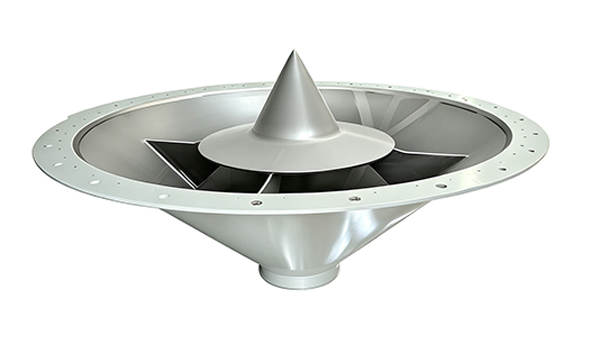

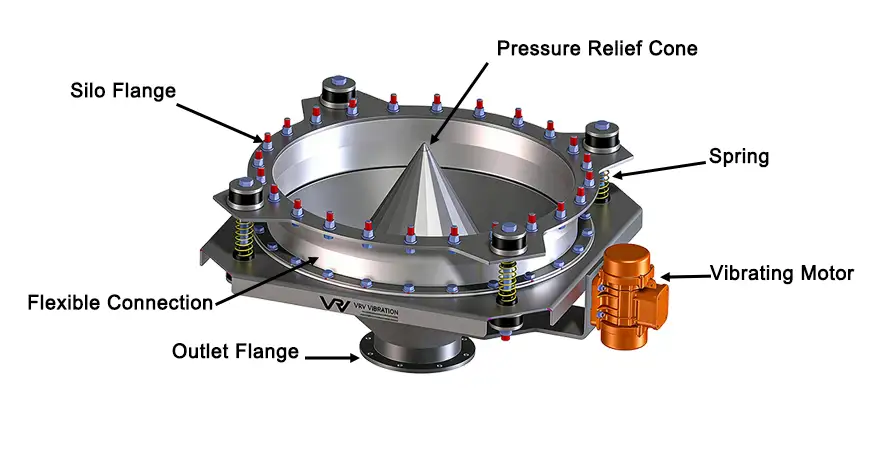

A bin activator is a vibratory flow‑aid device installed at the bottom of a silo. It consists of a conical hopper, central flow‑breaking cone, vibratory motor, and flexible suspension‑sealing assembly. Instead of transmitting vibration to the silo shell, it subjects the bottom conical hopper to controlled vibration to agitate the bulk material directly inside the silo. This breaks up bridging, rat‑holing and compacted lumps, enabling stable, continuous discharge of powder and granular materials and solving the pain point of silo discharge blockage.

Core Advantages of Bin Activators

1. Effective elimination of blockages. Specifically designed to resolve silo bridging, rat‑holing and material compaction. It delivers outstanding performance for fine, damp and sticky materials, enabling consistent, stable discharge and reducing production‑line downtime. Unlike silo wall vibrators, it applies vibration directly to the material rather than hammering the silo shell.
2. Protects the silo body and extends service life. Vibration loads are confined to the bin activator itself,with no vibration transmitted to the silo shell. This prevents weld cracking and fatigue damage to the silo, eliminating the need for hammering the silo for blockage removal.
3. Adjustable and controllable discharge flow. When paired with a vibration controller, excitation force can be steplessly adjusted to modify discharge rate. It delivers even and stable flow, facilitating integration with downstream batching and metering processes.
4. Eliminates safety risks from manual silo cleaning. Workers no longer need to poke material inside the silo or hammer the silo wall. Hazards such as burial and suffocation are avoided, and labour costs are reduced.
5. Wide range of compatible materials. Suitable for powders and granular materials including mineral powder, fly ash, cement, grain, feed, coke and granular chemical raw materials.
6. Enclosed structure for low dust emission. The fully sealed structure minimizes dust escape during discharging and improves on‑site working conditions.
7. Easy installation and retrofitting. Mounts directly onto the existing discharge outlet at the silo bottom. It can be retrofitted to old silos without extensive modification to the original silo structure.

Partial Selection Guidelines for Bin Activators

Model selection of bin activators is mainly determined by the silo diameter. Materials for bin activators shall be selected according to the characteristics of handled materials. Common material options include mild steel and stainless steel. For special operating conditions, special surface treatments can be applied to the inner surface of bin activators, such as PTFE coating and fitting with UPE wear‑resistant liners.

VRV is a professional Chinese supplier of bin activators. With over 20 years of R&D and manufacturing experience in bin activators, we focus on bulk‑solid discharge and bridge‑breaking technology. We deliver proven and complete bin activator solutions for customers across the globe in mining, building materials, chemical, grain, food and other industries.

---

Why choose VRV?

1. We have accumulated abundant field application data for powder and granular materials. We are well‑versed in various working conditions including silo bridging, rat‑holing and material buildup‑related blockages. Custom‑tailored designs are available for different material properties. Our vibration systems, suspension‑sealing assemblies and central flow‑breaking cones have been optimized repeatedly. Vibration will not be transferred to the silo body, ensuring reliable bridge‑breaking and discharging performance for both new silos and retrofitting projects of existing silos.

2. Our products hold ATEX explosion‑proof certification to meet safety requirements for working conditions with explosive dust. Food‑grade hygiene certification is also available. Constructed of stainless steel with hygienic sealing components, our bin activators are suitable for demanding hygienic production scenarios such as grain processing, food production and pharmaceutical manufacturing.
3. As an original manufacturer, VRV cuts out middlemen. Compared with imported European and American equipment, we offer outstanding cost‑performance with equivalent quality and configuration, alongside shorter lead‑times.
4. In addition, VRV provides full‑range services including pre‑sales material and working‑condition assessment, solution selection, strict factory testing and remote technical support. We deliver end‑to‑end services for global customers covering product selection, production and after‑sales maintenance, making us your trusted source partner for bin activators.
